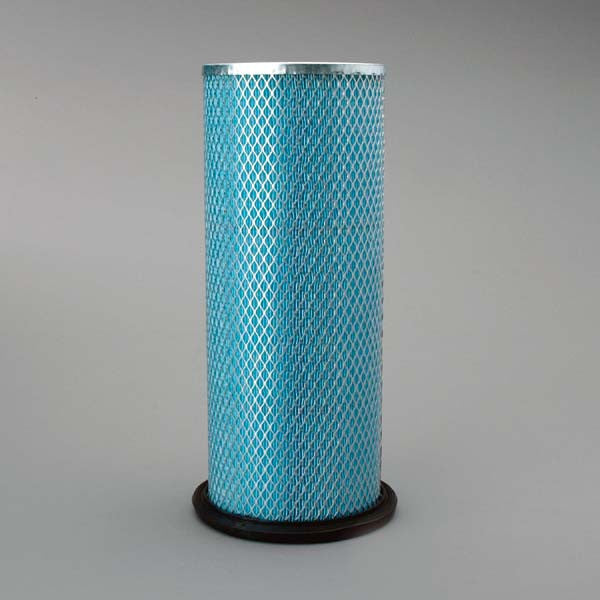

9451160011 | Bosch | Dust Collector Element
***Image may vary***

9451160011 | Bosch | OFS # 97-28-1392

  • $37.40


DUST COLLECTOR ELEMENT Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: INSIDE->OUT

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 7.60 IN (193.04 MM)

Outer Diameter, Bottom: 6.41 IN (162.81 MM)

Inner Diameter, Top: 5.27 IN (133.86 MM)

Inner Diameter, Bottom: 0.67 IN (17.02 MM)

Length: 16.13 IN (409.70 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END/BH



Packaging Specifications
Number per Carton: 1

Carton Weight: 3.00 LB (1.36 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
