93588 | Big A | OFS # 97-22-0694

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: 40 TUBES -- 5 X 8

Dimensional Specifications
Outer Diameter, Top: 19.63 IN (498.60 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 12.75 IN (323.85 MM)

Inner Diameter, Bottom:

Length: 8.30 IN (210.82 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive: N/A

Type of Endcap: N/A

Center Tube: N/A

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: N/A

Outer Jacket: YES

Configuration:

Packaging Specifications
Number per Carton: 1

Carton Weight: 10.20 LB (4.63 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

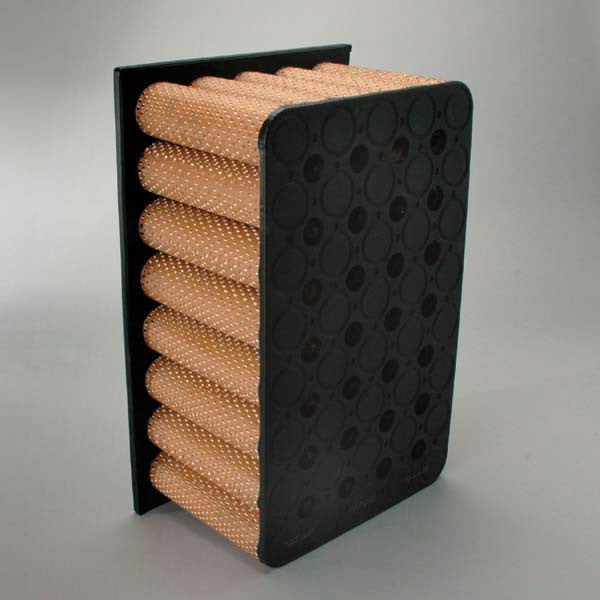

Intake Air Filter Element
