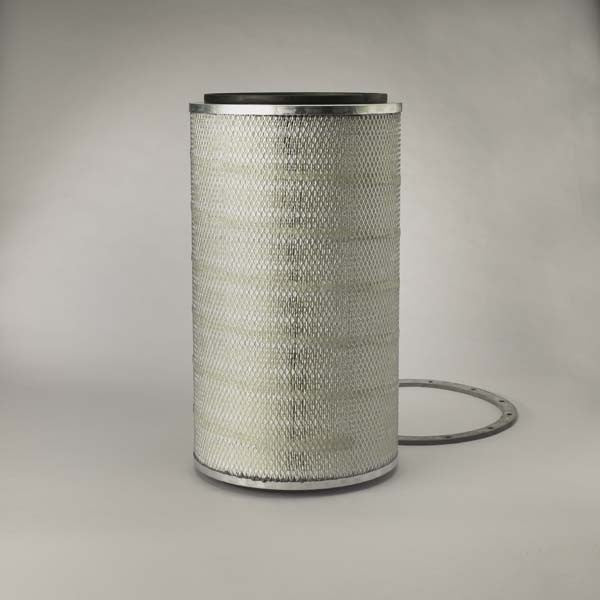

9457160008 | Bosch | Intake Air Filter Element
***Image may vary***

9457160008 | Bosch | OFS # 97-22-0661

  • $76.30


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 12.75 IN (323.85 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 8.38 IN (212.85 MM)

Inner Diameter, Bottom:

Length: 23.00 IN (584.20 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 13.20 LB (5.99 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
