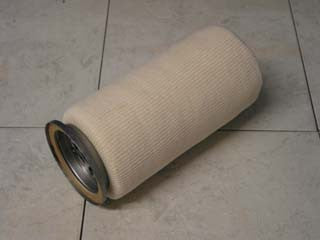

10-0107 | Filter-Mart Corp | Sock Type, Full Flow, Lube | OFS # 97-10-0107

Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 30.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 25 PSID

Dimensional Specifications
Outer Diameter, Top: 4.75 IN (120.65 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 0.81 IN (20.57 MM)

Inner Diameter, Bottom: 2.00 IN (50.80 MM)

Length: 10.00 IN (254.00 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: COTTON

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - SOCK

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weight 24.00 LB (10.89 KG) | All Online Filter Supply | replacement | parts are | equivalent | to or| interchangeable | with original manufacture parts | Names and part # used for cross reference only. |
