641128 | 3B Filters | OFS # 97-22-0614
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: N/A
Maximum Temperature: 300 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 7.81 IN (198.37 MM)
Outer Diameter, Bottom: 7.81 IN (198.37 MM)
Inner Diameter, Top: 4.09 IN (103.89 MM)
Inner Diameter, Bottom: 0.34 IN (8.64 MM)
Length: 14.75 IN (374.65 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES - METAL
Configuration: SINGLE W/BOLT HOLE
Packaging Specifications
Number per Carton: 1
Carton Weight: 5.00 LB (2.27 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

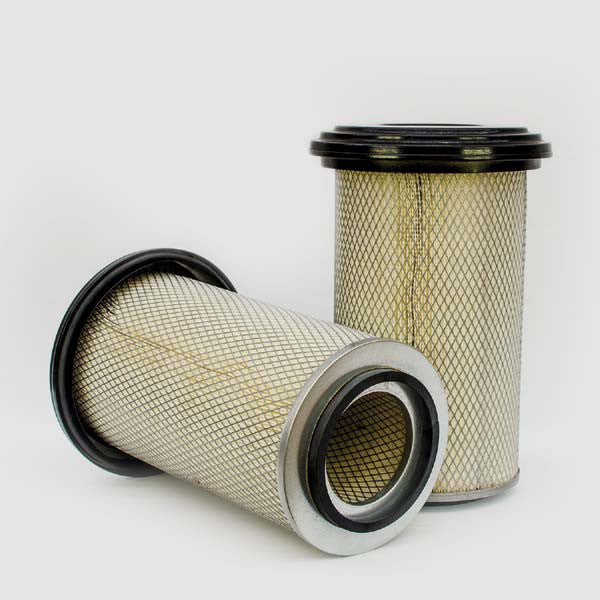

Intake Air Filter Element
