BN 17912 | 3B Filters | OFS # 97-22-1966

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  12.91 IN   (327.91 MM)

Outer Diameter, Bottom:  12.89 IN   (327.41 MM)

Inner Diameter, Top:  8.56 IN   (217.42 MM)

Inner Diameter, Bottom:  0.41 IN   (10.41 MM)

Length:  24.35 IN   (618.49 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  SINGLE / BOLT HOLE

Packaging Specifications
Number per Carton:  1

Carton Weight:  14.20 LB   (6.44 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

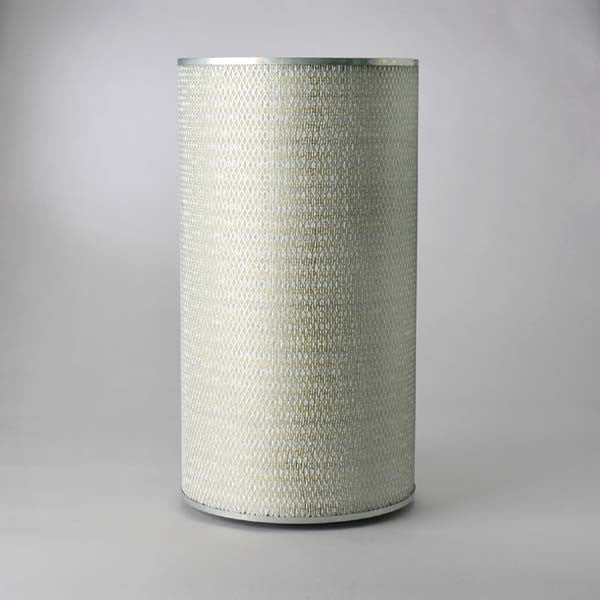

Intake Air Filter Element
