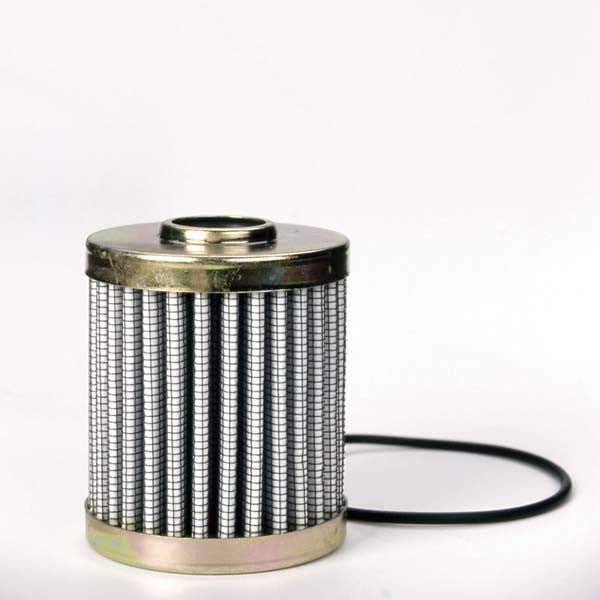

D931G05 | 3B Filters | Pleated Microglass Element | OFS # 97-05-0122
Usually Ships In 24-48 Hours
Performance Data
Micron Rating: 12.00 ABSOLUTE
Beta Rating: B12=200
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 50 PSID
Additional Notes: REPLACES FAIREY-ARLON
Dimensional Specifications
Outer Diameter, Top: 3.69 IN (93.73 MM)
Outer Diameter, Bottom: 3.69 IN (93.73 MM)
Inner Diameter, Top: 1.94 IN (49.28 MM)
Inner Diameter, Bottom:
Length: 7.88 IN (200.15 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: VITON
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: MICROGLASS
Filter Area: SQ.IN.
Plating: ZINC PLATED
Outer Jacket: NONE
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 3.00 LB (1.36 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
