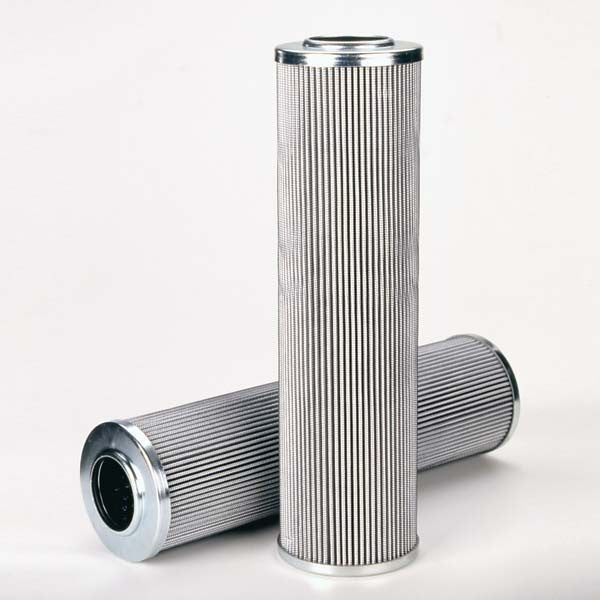

DHD660G03B | 3B Filters | Pleated Microglass Element | OFS # 97-05-0292

PLEATED MICROGLASS ELEMENT Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 3.00 ABSOLUTE

Beta Rating: B3=200

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Dimensional Specifications
Outer Diameter, Top: 3.56 IN (90.42 MM)

Outer Diameter, Bottom: 3.56 IN (90.42 MM)

Inner Diameter, Top: 1.90 IN (48.26 MM)

Inner Diameter, Bottom:

Length: 12.91 IN (327.91 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
