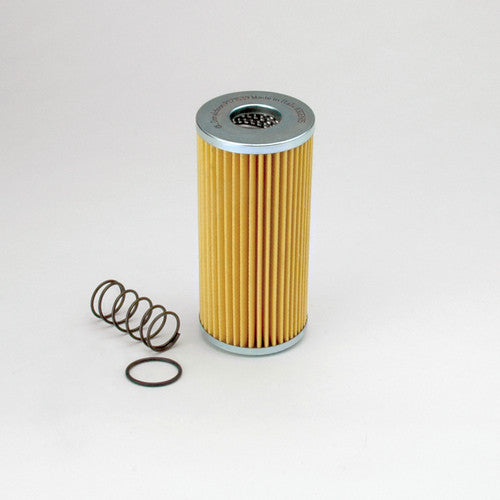

R140C10B| 3B Filters | Pleated Paper Element OFS # 97-01-3372

PLEATED PAPER ELEMENT Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  10.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  72.52 PSI

Maximum Temperature:  212 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.90 IN   (99.06 MM)

Outer Diameter, Bottom:  3.90 IN   (99.06 MM)

Inner Diameter, Top:  1.61 IN   (40.89 MM)

Inner Diameter, Bottom:

Length:  8.07 IN   (204.98 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  N/A

Type of Endcap:  PLASTIC

Center Tube:  STAINLESS STEEL

Type of Media:  PAPER

Filter Area:  596 SQ.IN.

Plating:  N/A

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  1.70 LB   (0.77 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
