R140T60B| 3B Filters | Pleated Wire Element | OFS # 97-06-0979

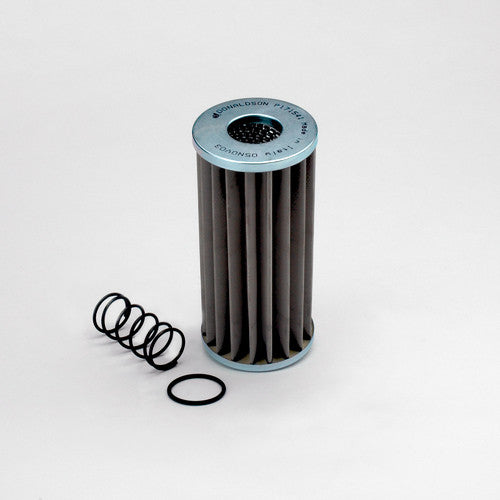

PLEATED WIRE ELEMENT

Performance Data
Micron Rating:  60.00 ABSOLUTE

Beta Rating:

Collapse Pressure Rating:  145 PSID

Maximum Temperature:  248 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  25 PSID

Dimensional Specifications
Outer Diameter, Top:  3.90 IN   (99.06 MM)

Outer Diameter, Bottom:  3.90 IN   (99.06 MM)

Inner Diameter, Top:  1.60 IN   (40.64 MM)

Inner Diameter, Bottom:

Length:  8.43 IN   (214.12 MM)

Thread:

Physical Specifications
Handle:  NONE

Seal Material:  VITON

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media:  304 SS WIRE

Filter Area:  289 SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight: ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
