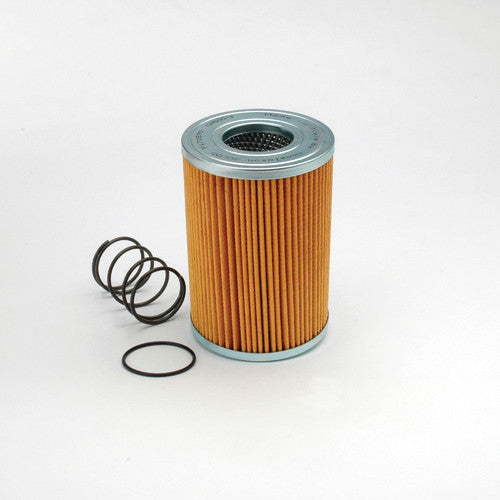

R160C25B| 3B Filters | Pleated Paper Element OFS # 97-32-1877

PLEATED PAPER ELEMENT Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  25.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  5.12 IN   (130.05 MM)

Outer Diameter, Bottom:

Inner Diameter, Top:  2.56 IN   (65.02 MM)

Inner Diameter, Bottom:

Length:  7.87 IN   (199.90 MM)

Thread:

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  914 SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  1.70 LB   (0.77 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
