851SA2291 | Baldwin-Lima-Ham | OFS # 97-22-0103
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: NOT RATED
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 13.84 IN (351.54 MM)
Outer Diameter, Bottom: 13.84 IN (351.54 MM)
Inner Diameter, Top: 9.48 IN (240.79 MM)
Inner Diameter, Bottom: 0.53 IN (13.46 MM)
Length: 16.00 IN (406.40 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: NONE
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: NONE
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN END/BH
Packaging Specifications
Number per Carton: 1
Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

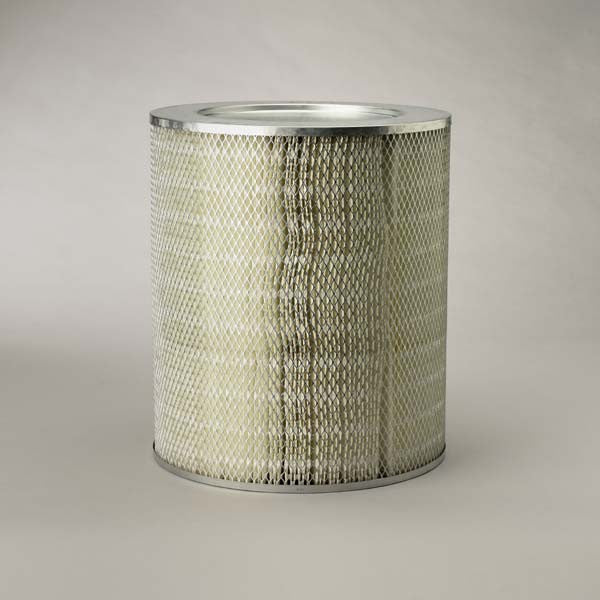

Intake Air Filter Element
