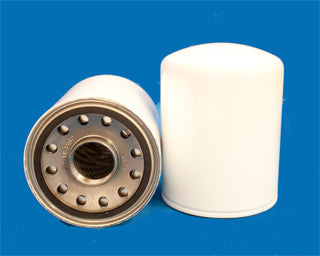

BT9356 | Baldwin |

Spin-On Element Replacement

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 300 PSI

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
(A) Outer Diameter, Top: 5.06 IN (128.52 MM)

(B) Outer Diameter, Bottom: 5.06 IN (128.52 MM)

(C) Inner Diameter, Top:

(D) Inner Diameter, Bottom:

(E) Length: 7.00 IN (177.80 MM)

(F) Thread: 1 1/2"-16

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTR0TIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 6

Carton Weight: 15.00 LB (6.80 KG) ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
