93130 | Big A | OFS # 97-22-0395
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: N/A
Maximum Temperature: 250 F
Direction of Flow: INSIDE->OUT
Recommended Changeout Differential Pressure: 20 PSID
Additional Notes: PLASTIC FIN ASSEMBLY ON THE OPEN END.
Dimensional Specifications
Outer Diameter, Top: 13.78 IN (350.01 MM)
Outer Diameter, Bottom: 13.78 IN (350.01 MM)
Inner Diameter, Top: 9.44 IN (239.78 MM)
Inner Diameter, Bottom: 0.50 IN (12.70 MM)
Length: 14.50 IN (368.30 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN WITH B/H
Packaging Specifications
Number per Carton: 1
Carton Weight: 9.20 LB (4.17 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

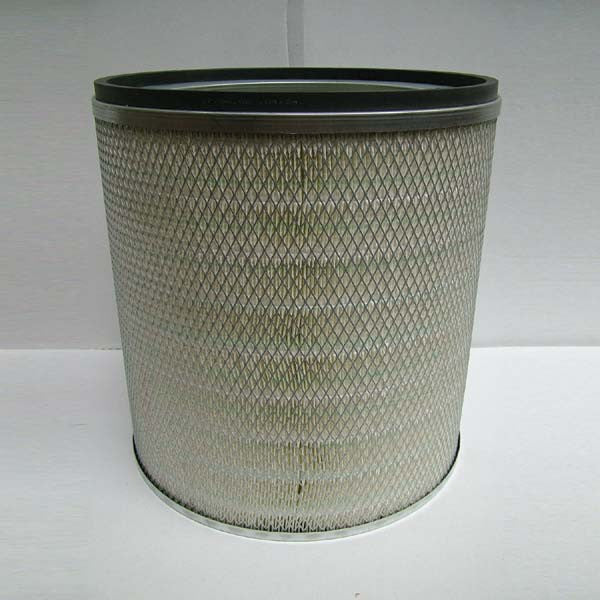

Intake Air Filter Element
