93691 | Big A | OFS # 97-22-0712
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature: 212 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 13.50 IN (342.90 MM)
Outer Diameter, Bottom: 12.77 IN (324.36 MM)
Inner Diameter, Top: 0.93 IN (23.62 MM)
Inner Diameter, Bottom: 8.36 IN (212.34 MM)
Length: 17.64 IN (448.06 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: SINGLE/BOLT/BOOT
Packaging Specifications
Number per Carton: 1
Carton Weight: 9.50 LB (4.31 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

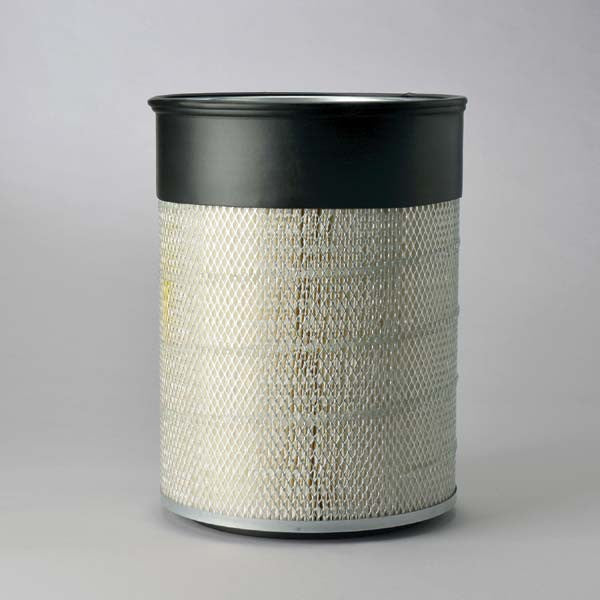

Intake Air Filter Element
