93746 | Big A | OFS # 97-28-1368

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating:

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 16.40 IN (416.56 MM)

Outer Diameter, Bottom: 13.83 IN (351.28 MM)

Inner Diameter, Top: 9.48 IN (240.79 MM)

Inner Diameter, Bottom: 0.93 IN (23.62 MM)

Length: 16.15 IN (410.21 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN/BH

Packaging Specifications
Number per Carton: 1

Carton Weight: 12.80 LB (5.81 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

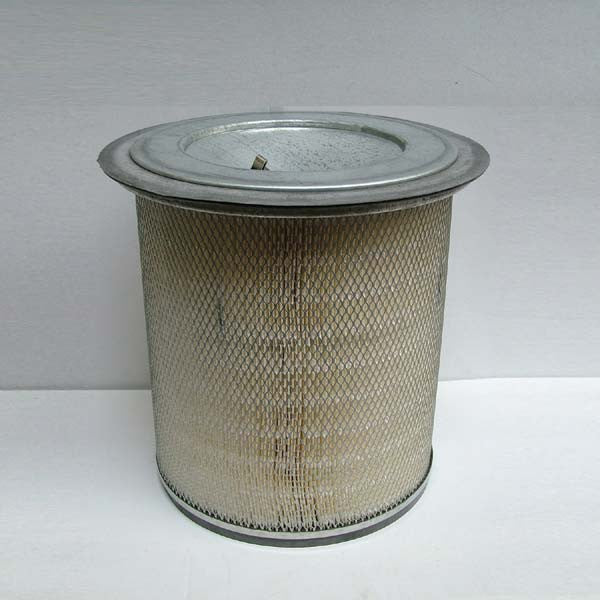

Intake Air Filter Element
