93869 | Big A | OFS # 97-22-1631
Performance Data
Micron Rating: 0.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 24.50 IN (622.30 MM)
Outer Diameter, Bottom:
Inner Diameter, Top: 2.19 IN (55.63 MM)
Inner Diameter, Bottom:
Length: 19.50 IN (495.30 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: FOAM
Type of Adhesive:
Type of Endcap: N/A
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: PANEL FILTER
Packaging Specifications
Number per Carton: 1
Carton Weight: 9.00 LB (4.08 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

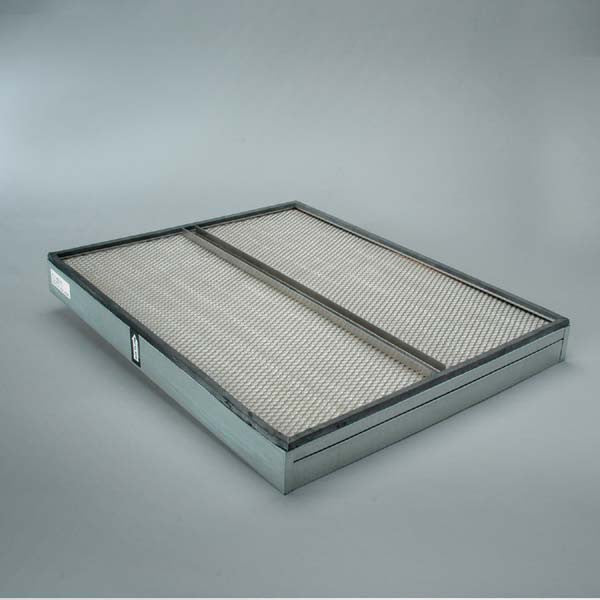

Intake Air Filter Element
