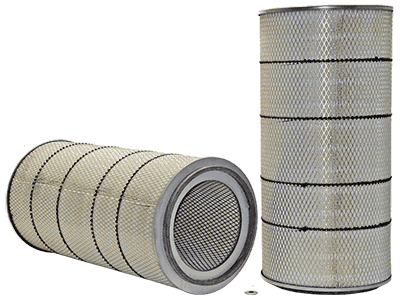

Big A | 94682 - Gas Turbine | OFS# 97-21-0006
Performance Data
Micron Rating: 0.00 ABSOLUTE
Beta Rating: N/A
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 150 F
Direction of Flow: OUTSIDE-IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 12.75 IN (323.85 MM)
Outer Diameter, Bottom: 12.75 IN (323.85 MM)
Inner Diameter, Top: 8.38 IN (212.85 MM)
Inner Diameter, Bottom: 1.18 IN (29.97 MM)
Length: 26.00 IN (660.40 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: NEOPRENE
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: 80/20 BLEND
Filter Area: 226 SQ.FT.
Plating: ELECTRO-GALVANIZED
Outer Jacket: NONE - NONE
Configuration: SINGLE OPEN END/BH
Packaging Specifications
Number per Carton: 1
Carton Weight: 16.00 LB (7.26 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
