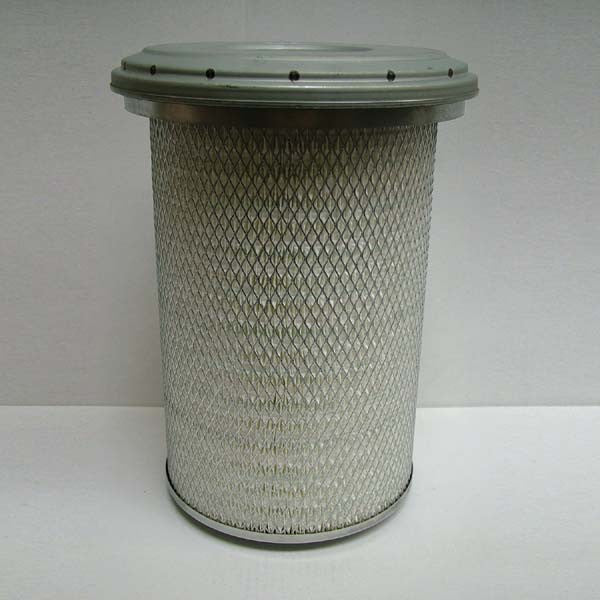

9451160012 | Bosch | OFS # 97-22-0500
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 8.94 IN (227.08 MM)
Outer Diameter, Bottom: 8.94 IN (227.08 MM)
Inner Diameter, Top: 0.44 IN (11.18 MM)
Inner Diameter, Bottom: 4.63 IN (117.60 MM)
Length: 15.00 IN (381.00 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: POLYVINYLCHLORIDE
Type of Endcap: PLATED STEEL
Center Tube: EXPANDED METAL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: SINGLE W/BOLT HOLE
Packaging Specifications
Number per Carton: 1
Carton Weight: 7.00 LB (3.18 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
Intake Air Filter Element
