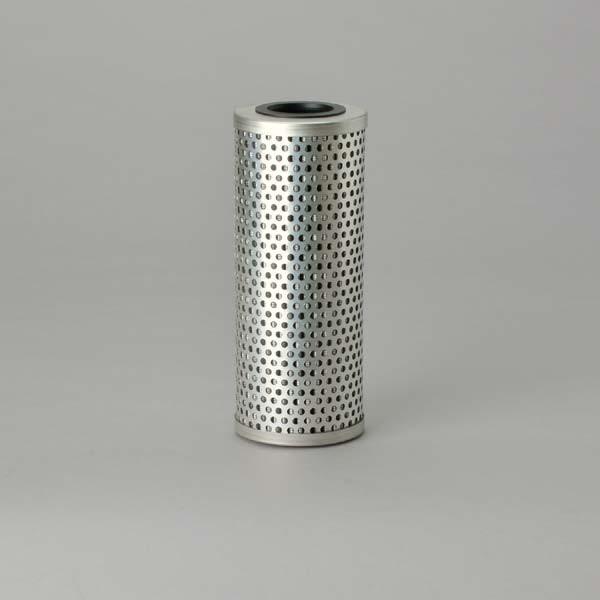

84415 | CARQUEST | OFS # 97-28-0125

Usually ships in 24-48 hours

Performance Data
Micron Rating:  5.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.75 IN   (95.25 MM)

Outer Diameter, Bottom:  3.75 IN   (95.25 MM)

Inner Diameter, Top:  1.75 IN   (44.45 MM)

Inner Diameter, Bottom:  1.75 IN   (44.45 MM)

Length:  9.06 IN   (230.12 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  N/A

Type of Endcap:  STEEL

Center Tube:  NONE

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  N/A

Outer Jacket:  YES

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  1.00 LB   (0.45 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
