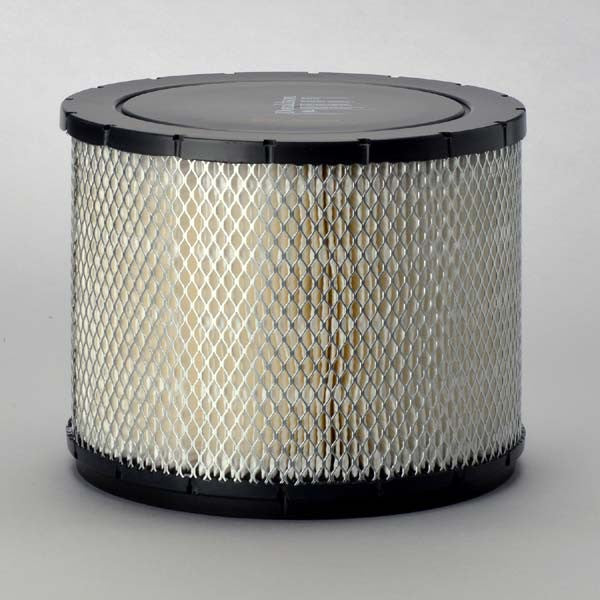

4L9851 | CATERPILLAR | Engine

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  10.41 IN   (264.41 MM)

Outer Diameter, Bottom:  10.41 IN   (264.41 MM)

Inner Diameter, Top:  6.03 IN   (153.16 MM)

Inner Diameter, Bottom:

Length:  8.25 IN   (209.55 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  5.00 LB   (2.27 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
