IR0726 | Caterpillar | OFS # 97-28-1308

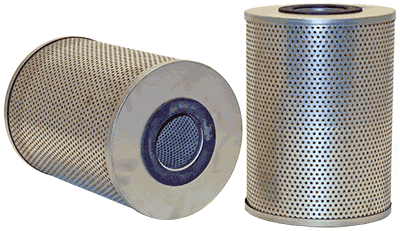

Lube Filter Element Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: N/A

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 7.38 IN (187.45 MM)

Outer Diameter, Bottom: 7.38 IN (187.45 MM)

Inner Diameter, Top: 2.84 IN (72.14 MM)

Inner Diameter, Bottom: 2.84 IN (72.14 MM)

Length: 10.25 IN (260.35 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: N/A

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: N/A

Plating: N/A

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 6

Carton Weight 26.00 LB (11.79 KG)
