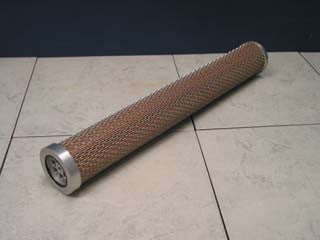

10DS19-187X1 - FINITE - OFS # 97-20-0037
Performance Data
Micron Rating: 3.00
Beta Rating: N/A
Collapse Pressure Rating:
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Additional Notes: 5/16 - 18 THREAD
Dimensional Specifications
Outer Diameter, Top: 2.75 IN (69.85 MM)
Outer Diameter, Bottom: 2.75 IN (69.85 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 19.38 IN (492.25 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: N/A
Type of Endcap: ALUMINUM
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: N/A
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
