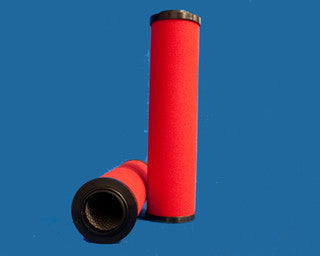

10IF25-120X1 - FINITE - OFS # 97-19-0237

AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating: 0.70

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 180 F

Direction of Flow: INSIDE->OUT

Recommended Changeout Differential Pressure: 15 PSID

Additional Notes: DOES NOT REQUIRE A WING NUT. ELEMENT HAS A THREADED ID

Dimensional Specifications
Outer Diameter, Top: 3.40 IN (86.36 MM)

Outer Diameter, Bottom: 3.40 IN (86.36 MM)

Inner Diameter, Top: 2.05 IN (52.07 MM)

Inner Diameter, Bottom:

Length: 13.19 IN (335.03 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: POLYPROPYLENE

Type of Endcap: POLYPROPYLENE

Center Tube: POLY + C. STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 6

Carton Weight: 1.00 LB (0.45 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
