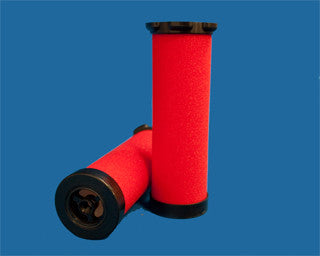

KP6CU10-052X4 | Keltec, Inc. | Air Coalescer Element | OFS # 97-19-0263

Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 0.20

Beta Rating:

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 15 PSID

Dimensional Specifications
Outer Diameter, Top: 1.75 IN (44.45 MM)

Outer Diameter, Bottom: 1.75 IN (44.45 MM)

Inner Diameter, Top: 1.20 IN (30.48 MM)

Inner Diameter, Bottom:

Length: 5.70 IN (144.78 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: N/A

Type of Endcap: POLYPROPYLENE

Center Tube: POLYPROPYLENE

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: N/A

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 6

Carton Weight 1.00 LB (0.45 KG) | All Online Filter Supply | replacement | parts are | equivalent | to or| interchangeable | with original manufacture parts | Names and part # used for cross reference only. |
