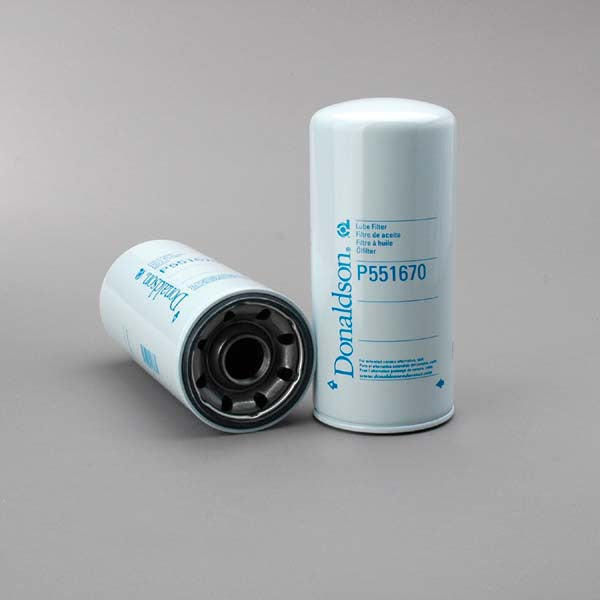

9350 | Crosland | OFS # 97-28-0177

Spin-On Filter Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  25.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  4.74 IN   (120.40 MM)

Outer Diameter, Bottom:  4.74 IN   (120.40 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  11.31 IN   (287.27 MM)

Thread:  1-1/2-12

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  6

Carton Weight:  17.50 LB   (7.94 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
