9592 | Crosland | OFS # 97-22-1013

Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  12.22 IN   (310.39 MM)

Outer Diameter, Bottom:  12.19 IN   (309.63 MM)

Inner Diameter, Top:  0.41 IN   (10.41 MM)

Inner Diameter, Bottom:  7.89 IN   (200.41 MM)

Length:  14.50 IN   (368.30 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:  SINGLE / BOLT HOLE

Packaging Specifications
Number per Carton:  1

Carton Weight:  9.00 LB   (4.08 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

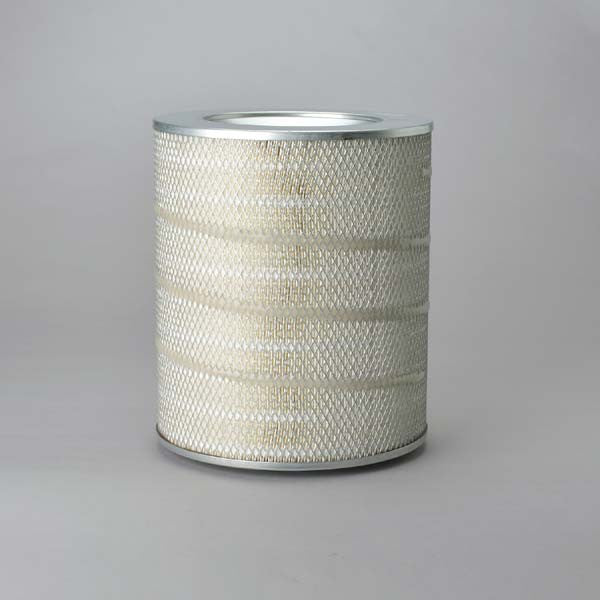

Intake Air Filter Element
