9688 | Crosland | OFS # 97-22-0821
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 175 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 14.75 IN (374.65 MM)
Outer Diameter, Bottom: 12.03 IN (305.56 MM)
Inner Diameter, Top: 0.90 IN (22.86 MM)
Inner Diameter, Bottom: 7.68 IN (195.07 MM)
Length: 18.50 IN (469.90 MM)
Thread: NONE
Physical Specifications
Handle: YES
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 12.60 LB (5.72 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

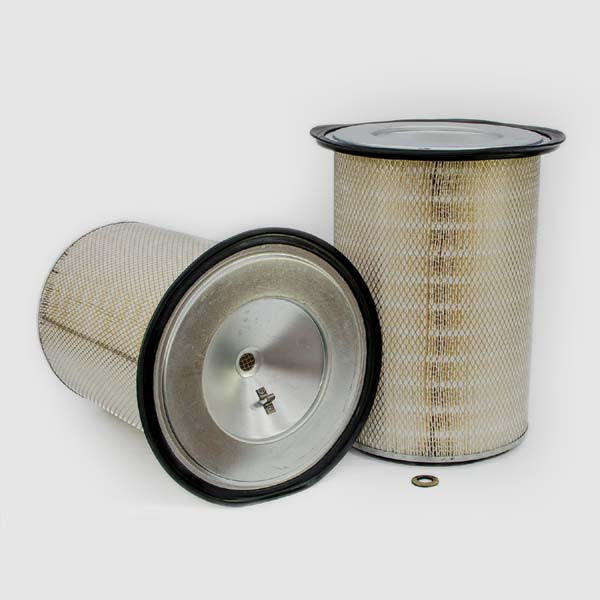

Intake Air Filter Element
