9690 | Crosland | OFS # 97-22-0976

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 9.65 IN (245.11 MM)

Outer Diameter, Bottom: 9.65 IN (245.11 MM)

Inner Diameter, Top: 5.25 IN (133.35 MM)

Inner Diameter, Bottom:

Length: 15.57 IN (395.48 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN ENDS

Packaging Specifications
Number per Carton: 1

Carton Weight: 6.20 LB (2.81 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

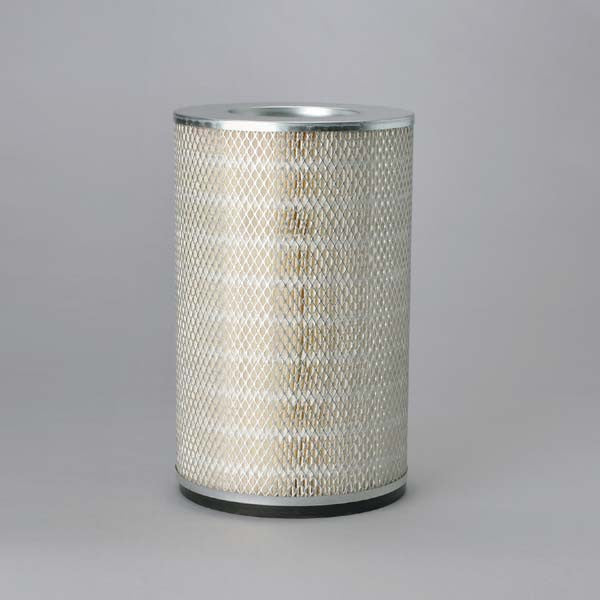

Intake Air Filter Element
