997K | Crosland | OFS # 97-22-0501
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating:
Collapse Pressure Rating: NOT RATED
Maximum Temperature: 300 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 6.09 IN (154.69 MM)
Outer Diameter, Bottom: 7.81 IN (198.37 MM)
Inner Diameter, Top: 0.75 IN (19.05 MM)
Inner Diameter, Bottom: 3.50 IN (88.90 MM)
Length: 15.50 IN (393.70 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration:
Packaging Specifications
Number per Carton: 1
Carton Weight: 4.00 LB (1.81 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

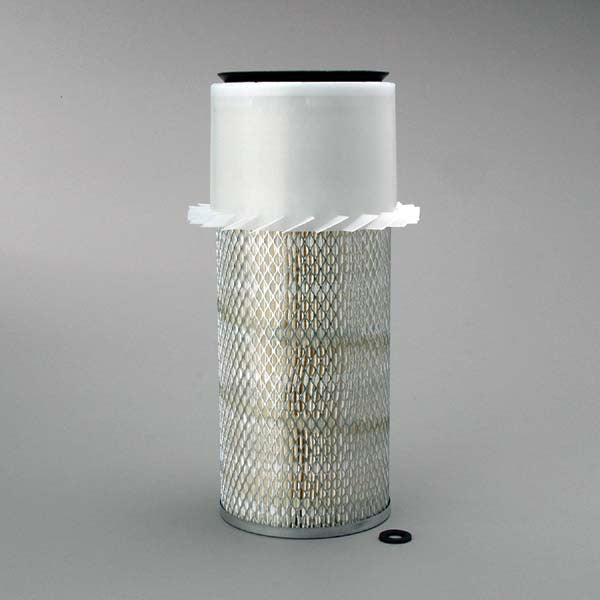

Intake Air Filter Element
