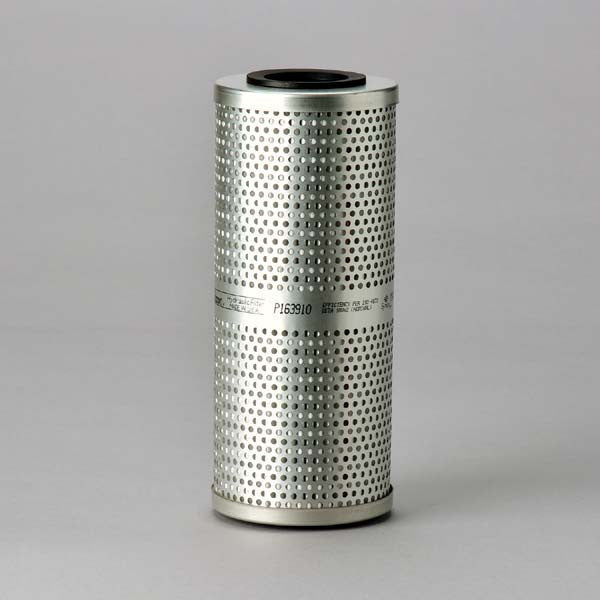

F13BA | Crosland | OFS # 97-01-0185

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.88 IN (98.55 MM)

Outer Diameter, Bottom: 3.88 IN (98.55 MM)

Inner Diameter, Top: 1.63 IN (41.40 MM)

Inner Diameter, Bottom: 1.63 IN (41.40 MM)

Length: 9.38 IN (238.25 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: POLYVINLYCHLORIDE

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weight: 17.00 LB (7.71 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
