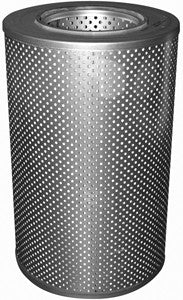

301-MPG | DAHL | OFS # 97-32-6170
Performance Data
Micron Rating: 3.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 6.06 IN (153.92 MM)
Outer Diameter, Bottom: 6.06 IN (153.92 MM)
Inner Diameter, Top: 1.47 IN (37.34 MM)
Inner Diameter, Bottom: 3.25 IN (82.55 MM)
Length: 9.69 IN (246.13 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: MICROGLASS
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 3.10 LB (1.41 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
