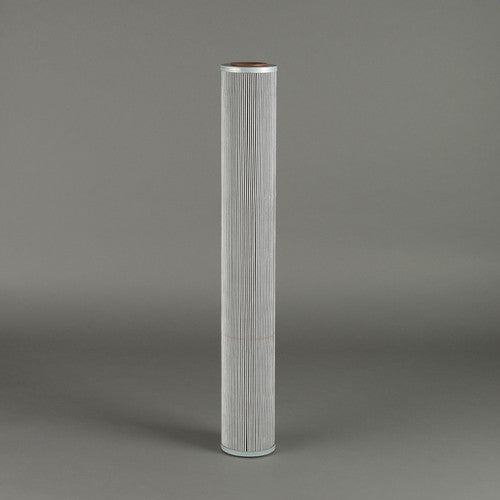

P566278 | Donaldson | OFS # 97-F9700-27K3V

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 3.00 ABSOLUTE

Beta Rating: B3 = 200

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 275 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Dimensional Specifications
Outer Diameter, Top: 3.90 IN (99.06 MM)

Outer Diameter, Bottom: 3.90 IN (99.06 MM)

Inner Diameter, Top: 1.60 IN (40.64 MM)

Inner Diameter, Bottom: 1.60 IN (40.64 MM)

Length: 27.60 IN (701.04 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE - NONE

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 9.00 LB (4.08 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
