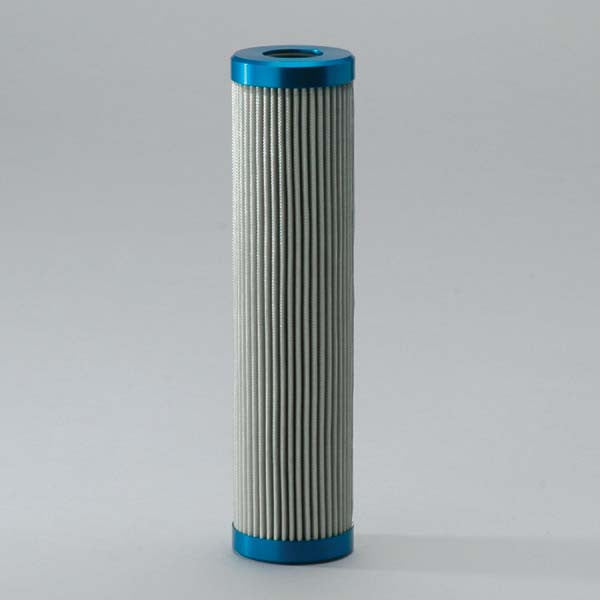

D120G03B | Filtrec | Pleated Microglass Filter Element
***Image may vary***

D120G03B | Filtrec | Pleated Microglass Element | OFS # 97-F9801-4K3B

  • $103.00


PLEATED MICROGLASS ELEMENT

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 3.00 ABSOLUTE

Beta Rating: B3 = 200

Collapse Pressure Rating: 3000 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID



Dimensional Specifications
Outer Diameter, Top: 2.00 IN (50.80 MM)

Outer Diameter, Bottom: 2.00 IN (50.80 MM)

Inner Diameter, Top: 1.00 IN (25.40 MM)

Inner Diameter, Bottom:

Length: 4.50 IN (114.30 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: 165 SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
