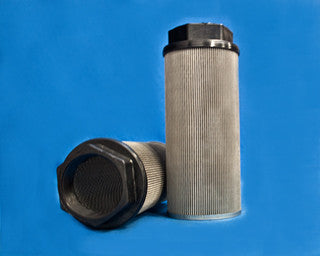

P100-3-60 - FLOW EZY - OFS # 97-09-0209
Performance Data
Micron Rating: 250.00 ABSOLUTE
Beta Rating: N/A
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 5.21 IN (132.33 MM)
Outer Diameter, Bottom: 5.05 IN (128.27 MM)
Inner Diameter, Top: 3.26 IN (82.80 MM)
Inner Diameter, Bottom:
Length: 12.50 IN (317.50 MM)
Thread: 3" NPT
Physical Specifications
Handle: NONE
Seal Material: NONE
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: 304 SS WIRE
Filter Area: SQ.IN.
Plating:
Outer Jacket: NONE - NONE
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
