0007L010P | HYCON & HYDAC | OFS # 97-28-8958

BREATHER ELEMENT

Performance Data
Micron Rating:  10.00

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  N/A

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Additional Notes:  THIS IS AN ORIGINAL HYDAC ELEMENT.

Dimensional Specifications
Outer Diameter, Top:  3.25 IN   (82.55 MM)

Outer Diameter, Bottom:  3.25 IN   (82.55 MM)

Inner Diameter, Top:  1.75 IN   (44.45 MM)

Inner Diameter, Bottom: N/A

Length:  2.12 IN   (53.85 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  MOLDED

Type of Adhesive:  N/A

Type of Endcap:  PLASTISOL

Center Tube:  N/A

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  N/A

Outer Jacket:  NONE

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  1.00 LB   (0.45 KG)

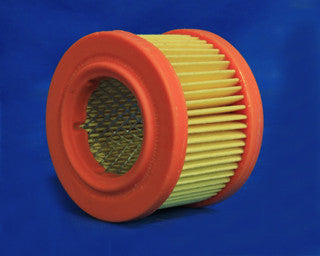

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.** The Above image is for reference only and not actual product.
