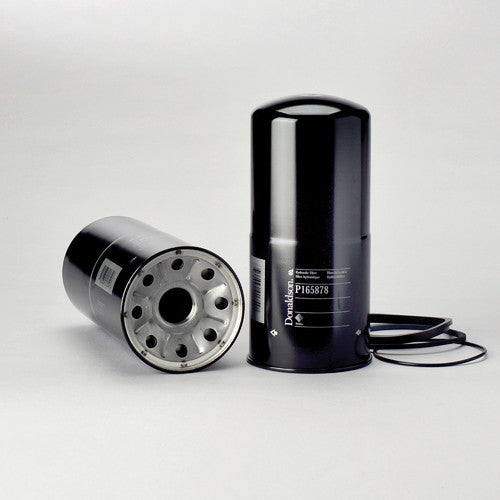

P165878 HYDRAULIC FILTER, SPIN-ON same as ZLE25P | ZINGA

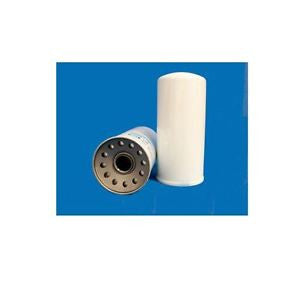

***Image may vary***

ZLE25P | ZINGA INDUSTRIES | OFS # 97-F7500-8K25B | Product Ships In 24-48 hours

  • $52.89


Performance Data

Micron Rating:  25.00 ABSOLUTE

Beta Rating:  B25 = 200

Collapse Pressure Rating:  100 PSID

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  50 PSID



Dimensional Specifications

Outer Diameter, Top:  5.06 IN   (128.52 MM)

Outer Diameter, Bottom:  5.06 IN   (128.52 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  11.00 IN   (279.40 MM)

Thread:  1 1/2"-16



Physical Specifications

Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  EPOXY

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  MICROGLASS

Filter Area:  SQ.IN.

Plating:  ZINC PLATED

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END



Packaging Specifications
Number per Carton:  6

Carton Weight:  18.00 LB   (8.16 KG)



**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
