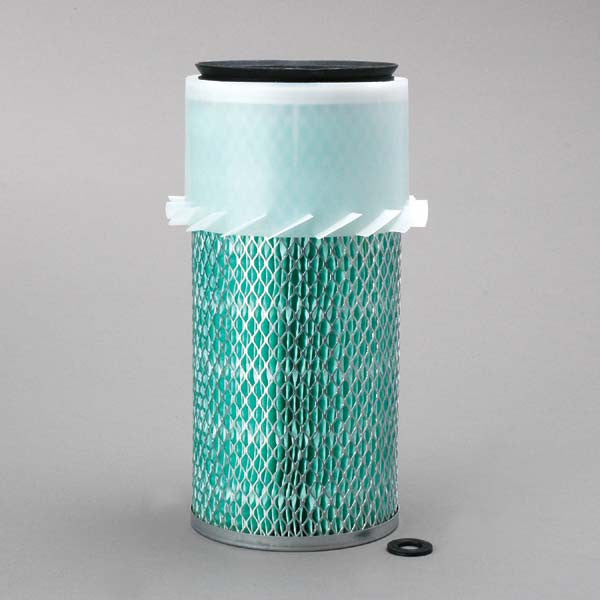

FC204K | Gpc | OFS # 97-22-0393
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: N/A
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Additional Notes: ELEMENT HAS FINS LOCATED TOWARDS OPEN END.
Dimensional Specifications
Outer Diameter, Top: 5.19 IN (131.83 MM)
Outer Diameter, Bottom: 6.38 IN (162.05 MM)
Inner Diameter, Top: 2.63 IN (66.80 MM)
Inner Diameter, Bottom: 0.66 IN (16.76 MM)
Length: 11.50 IN (292.10 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: NONE
Outer Jacket: YES - METAL
Configuration: SINGLE W/ BOLT HOLE
Packaging Specifications
Number per Carton: 1
Carton Weight: 3.00 LB (1.36 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
Intake Air Filter Element
