FC214 | Gpc | OFS # 97-22-0616

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.13 IN (104.90 MM)

Outer Diameter, Bottom: 3.35 IN (85.09 MM)

Inner Diameter, Top: 2.95 IN (74.93 MM)

Inner Diameter, Bottom: 2.95 IN (74.93 MM)

Length: 14.04 IN (356.62 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: FELT

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES - METAL

Configuration: SINGLE W/ BOLT HOLE

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.10 LB (0.50 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

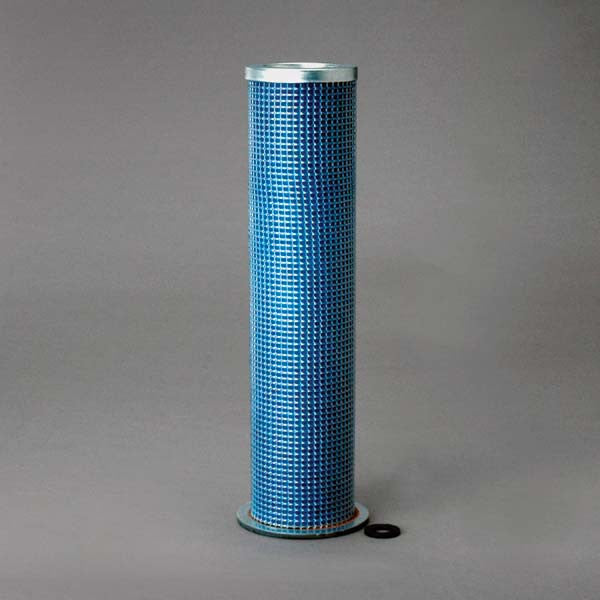

Intake Air Filter Element
