E312L | Hengst | OFS # 97-15-0911
Performance Data
Micron Rating: 0.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating:
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 16.54 IN (420.12 MM)
Outer Diameter, Bottom: 16.52 IN (419.61 MM)
Inner Diameter, Top: 10.02 IN (254.51 MM)
Inner Diameter, Bottom: 0.41 IN (10.41 MM)
Length: 12.53 IN (318.26 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: NONE
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: NONE - NONE
Configuration: SINGLE / BOLT HOLE
Packaging Specifications
Number per Carton: 1
Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

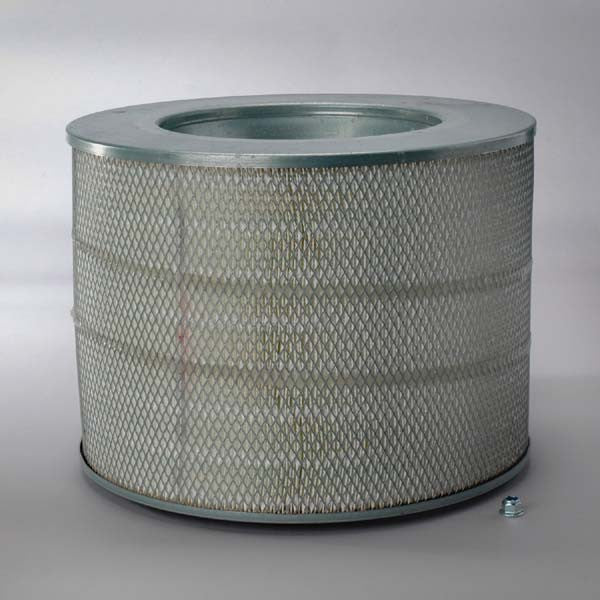

Intake Air Filter Element
