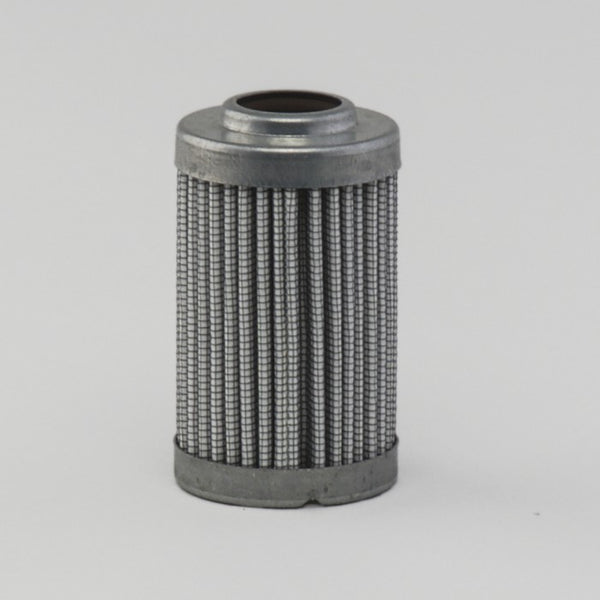

00060D10VG30HC | Ingersoll Rand | Pleated Micro-Glass Element
***Image may vary***

00060D10VG30HC | Ingersoll Rand | Pleated Micro-Glass Element

  • $28.14
  • Save $2.77




Stock Status: In Stock

Lead Time: Usually Ships In 24-48 Hours

Shipping Service: UPS Ground



Performance Data
Micron Rating:  12.00 ABSOLUTE

Beta Rating:  B12 = 200

Collapse Pressure Rating:  100 PSID

Maximum Temperature:  375 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  50 PSID



Dimensional Specifications

  • Outer Diameter, Top:  1.88 IN   (47.75 MM)
  • Outer Diameter, Bottom:  1.88 IN   (47.75 MM)
  • Inner Diameter, Top:  0.86 IN   (21.84 MM)
  • Inner Diameter, Bottom:
  • Length:  3.28 IN   (83.31 MM)
  • Thread:  NONE


Physical Specifications
Handle:  NONE

Seal Material:  VITON

Type of Filter:  PLEATED MICROGLASS ELEMENT

Type of Adhesive:  EPOXY

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  MICROGLASS

Filter Area:  60 SQ.IN.

Plating:  ZINC PLATED

Outer Jacket:  NONE - NONE

Configuration:  SINGLE OPEN END



Packaging Specifications
Number per Carton:  1

Carton Weight:



***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacturer parts, Names and part # used for cross reference only.***
