59407973 | Ingersoll Rand | OFS # 97-22-0653

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: FINS ON ONE END

Dimensional Specifications
Outer Diameter, Top: 4.17 IN (105.92 MM)

Outer Diameter, Bottom: 3.27 IN (83.06 MM)

Inner Diameter, Top: 1.79 IN (45.47 MM)

Inner Diameter, Bottom: 0.41 IN (10.41 MM)

Length: 7.36 IN (186.94 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: GALVANIZED

Outer Jacket: YES - METAL

Configuration: SINGLE/FIN/BOLT HOLE

Packaging Specifications
Number per Carton: 1

Carton Weight: 0.80 LB (0.36 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

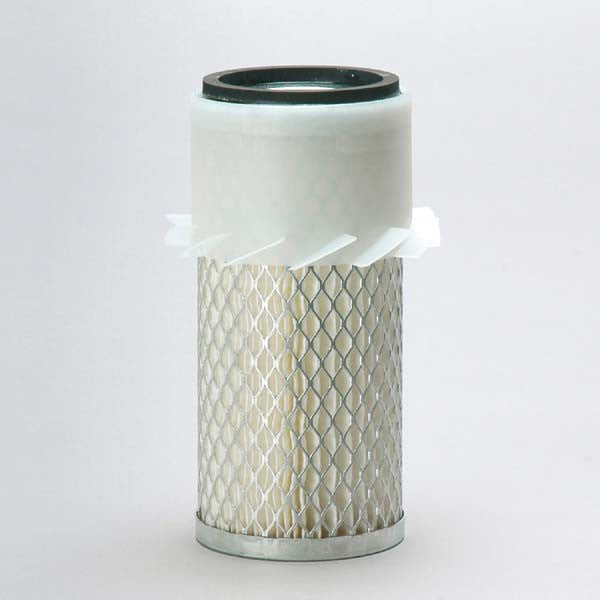

Intake Air Filter Element
