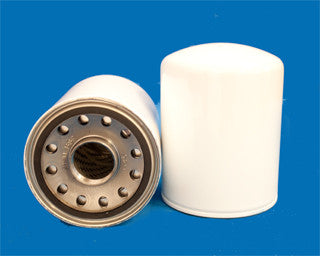

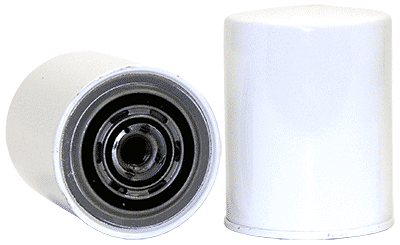

59490664 | Ingersoll Rand | Spin-On Element | OFS # 97-25-0310

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: B17=200

Collapse Pressure Rating: 348 PSID

Maximum Temperature: 275 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: MAX WORKING PRESSURE: 175 PSI

Dimensional Specifications
Outer Diameter, Top: 3.70 IN (93.98 MM)

Outer Diameter, Bottom: 3.70 IN (93.98 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 5.78 IN (146.81 MM)

Thread: 1"-12 UNF

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weight 15.00 LB (6.80 KG) | All Online Filter Supply | replacement | parts are | equivalent | to or| interchangeable | with original manufacture parts | Names and part # used for cross reference only. |
