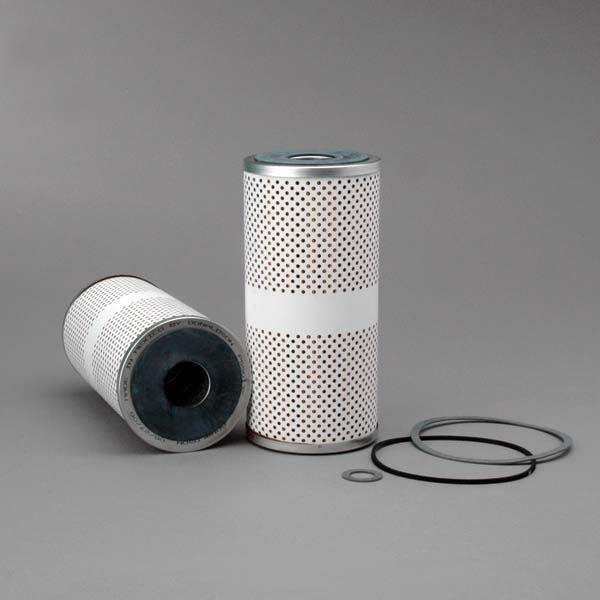

59507368 | Ingersoll Rand | OFS # 97-28-0185

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 25.00

Beta Rating: N.A.

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.51 IN (114.55 MM)

Outer Diameter, Bottom: 4.51 IN (114.55 MM)

Inner Diameter, Top: 1.44 IN (36.58 MM)

Inner Diameter, Bottom: 1.44 IN (36.58 MM)

Length: 8.91 IN (226.31 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: POLYVINYLCHLORIDE

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weight: 14.20 LB (6.44 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
