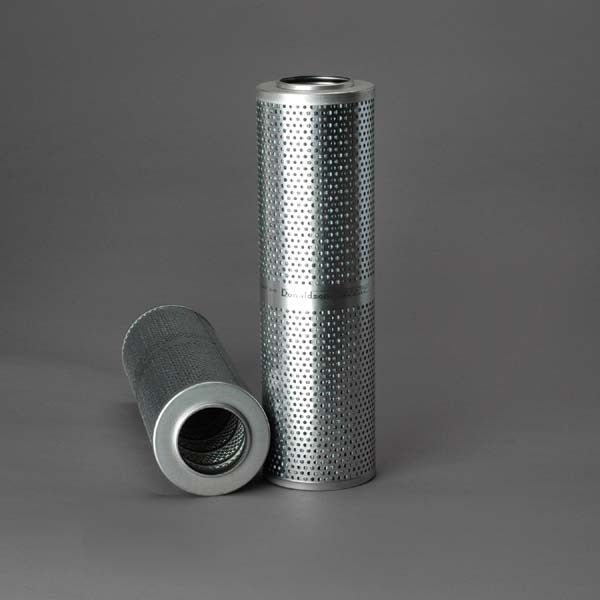

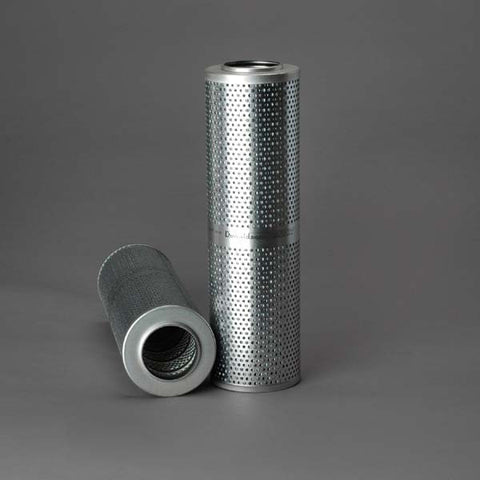

6564 | Ingersoll Rand | Pleated Microglass Element | OFS # 97-F8900-13K25B

PLEATED MICROGLASS ELEMENT Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 25.00 ABSOLUTE

Beta Rating: B25 = 200

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Dimensional Specifications
Outer Diameter, Top: 3.80 IN (96.52 MM)

Outer Diameter, Bottom: 3.80 IN (96.52 MM)

Inner Diameter, Top: 2.19 IN (55.63 MM)

Inner Diameter, Bottom:

Length: 12.90 IN (327.66 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.50 LB (1.13 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
