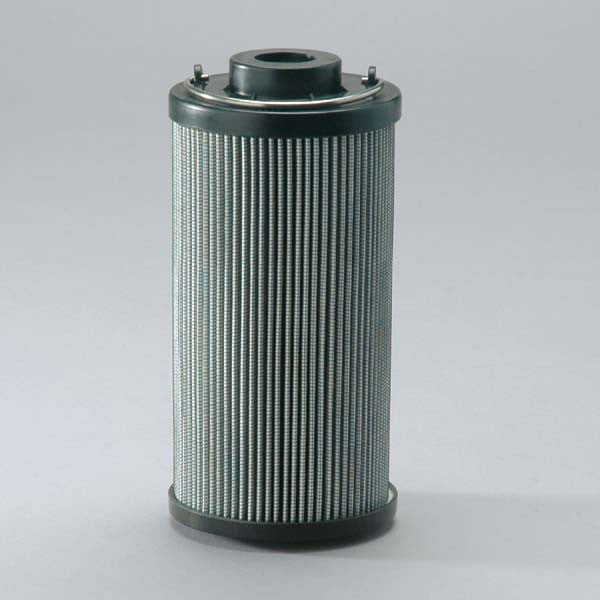

7308 | Ingersoll Rand | Pleated Microglass Element | OFS # 97-05-0313
Usually Ships In 24-48 Hours
Performance Data
Micron Rating: 3.00
Beta Rating: B3=200
Collapse Pressure Rating: 300
Maximum Temperature: 250
Direction of Flow: OUT->IN
Recommended Changeout Differential Pressure: 50 PSID
Additional Notes: THIS ELEMENT HAS A BYPASS
Dimensional Specifications
Outer Diameter, Top: 3.75 IN (95.25 MM)
Outer Diameter, Bottom: 3.75 IN (95.25 MM)
Inner Diameter, Top: 1.88 IN (47.75 MM)
Inner Diameter, Bottom:
Length: 7.75 IN (196.85 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: VITON
Type of Adhesive: EPOXY
Type of Endcap: STEEL
Center Tube: STEEL
Type of Media: MICROGLASS
Filter Area: SQ.IN.
Plating: ZINC PLATED
Outer Jacket: NONE
Configuration:
Packaging Specifications
Number per Carton: 1
Carton Weight: 1.70 LB (0.77 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
