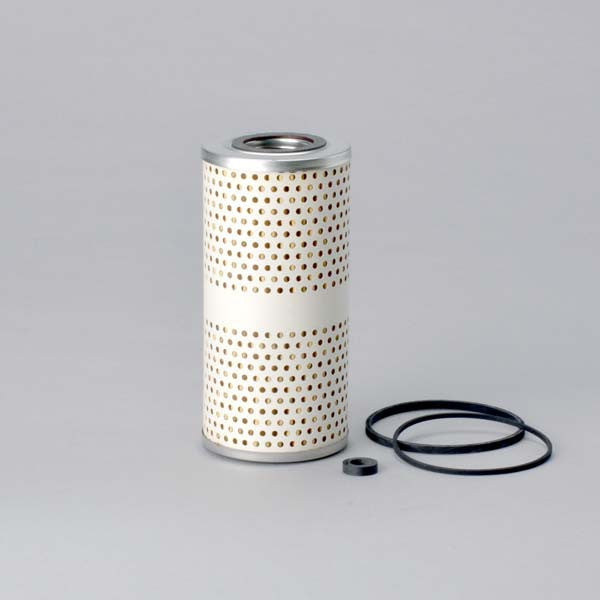

91634733|Ingersoll Rand||OFS-97-01-0938

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 2.94 IN (74.68 MM)

Outer Diameter, Bottom: 2.94 IN (74.68 MM)

Inner Diameter, Top: 1.25 IN (31.75 MM)

Inner Diameter, Bottom: 1.25 IN (31.75 MM)

Length: 5.50 IN (139.70 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Configuration:

Packaging Specifications
Number per Carton: 1

Carton Weight: 4.90 LB (2.22 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
