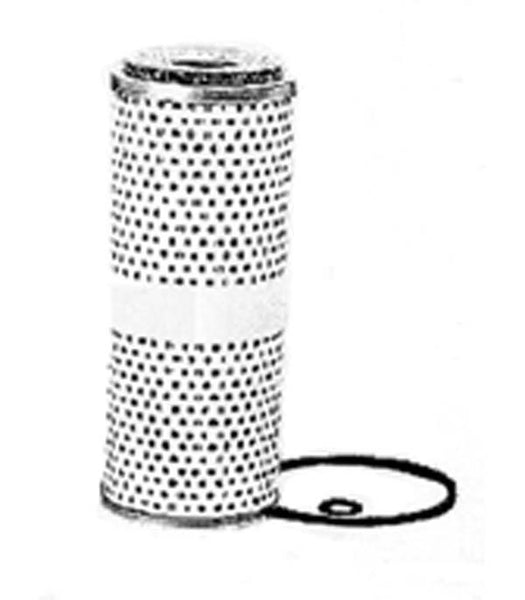

92293273 | Ingersoll Rand | Lube Element | OFS # 97-28-0463

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 25.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.60 IN (91.44 MM)

Outer Diameter, Bottom: 3.60 IN (91.44 MM)

Inner Diameter, Top: 1.97 IN (50.04 MM)

Inner Diameter, Bottom: 1.93 IN (49.02 MM)

Length: 7.01 IN (178.05 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 7.60 LB (3.45 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
