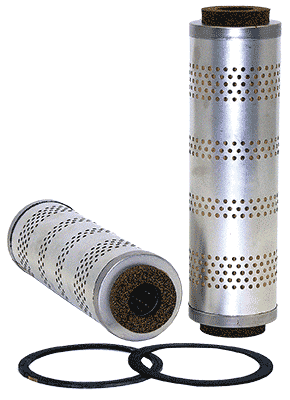

600038 | KAYDON | OFS # 97-01-0002

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 100 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 2.63 IN (66.80 MM)

Outer Diameter, Bottom: 2.63 IN (66.80 MM)

Inner Diameter, Top: 1.06 IN (26.92 MM)

Inner Diameter, Bottom: 1.06 IN (26.92 MM)

Length: 9.75 IN (247.65 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: 5 SQ.FT.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weight: 6.40 LB (2.90 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
