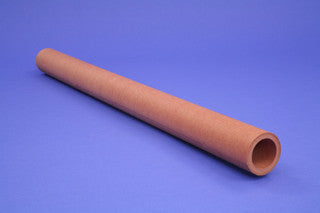

88862 | KAYDON | OFS # 97-28-0006

AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: REPLACES KAYDON # 88862

Dimensional Specifications
Outer Diameter, Top: 2.50 IN (63.50 MM)

Outer Diameter, Bottom: 2.50 IN (63.50 MM)

Inner Diameter, Top: 1.75 IN (44.45 MM)

Inner Diameter, Bottom: 1.75 IN (44.45 MM)

Length: 31.20 IN (792.48 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive: EPOXY

Type of Endcap: NONE

Center Tube: NONE

Type of Media: PAPER

Filter Area: 246 SQ.IN.

Plating: NONE

Outer Jacket: NONE - NONE

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 25

Carton Weight: 26.00 LB (11.79 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
